RL02 Disk Drive Assembly

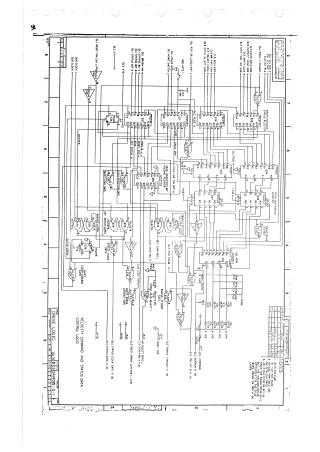

This document provides a complete set of engineering schematics for the RL02 disk drive assembly, specifically focusing on the drive logic. It includes detailed logic diagrams for velocity command and status data, count logic, disk speed control, and various interface signals. Additionally, the document contains comprehensive parts lists for the RL02 disk drive assembly and the power panel assembly, detailing part numbers, descriptions, and quantities per variation. It also includes an installation guide for the interlock rod assembly.
