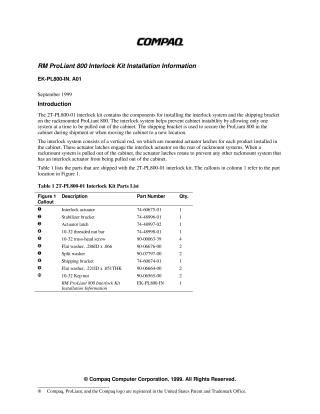

ProLiant 800 Interlock Kit

This document outlines the installation process for the Compaq ProLiant 800 Interlock Kit (2T-PL800-01). The interlock system is designed to improve cabinet stability by ensuring that only one rackmounted system can be pulled out of the cabinet at a time. The guide provides:

• A comprehensive parts list.
• Step-by-step procedures for installing the interlock system components (actuator, actuator latch, and stabilizer bracket).
• Instructions for installing the shipping bracket used to secure the unit during transport.

The document includes a technical diagram (Figure 1) to assist with the assembly of the components onto the rack cabinet.
