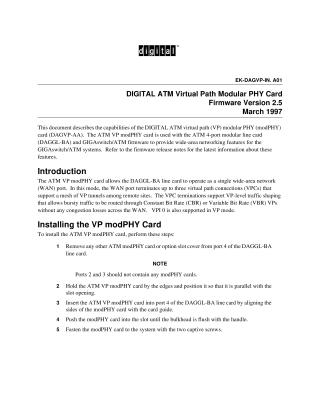

DIGITAL ATM Virtual Path Modular PHY Card

This document provides an overview and installation guide for the DIGITAL ATM Virtual Path (VP) modular PHY (modPHY) card (DAGVP-AA), designed for use with the GIGAswitch/ATM system and the DAGGL-BA line card. The card enables wide-area networking by allowing the line card to operate as a single WAN port, supporting up to three virtual path connections (VPCs) with traffic shaping capabilities.

Key information provided includes:

• Installation: Step-by-step instructions for installing the card into port 4 of the DAGGL-BA line card.
• Configuration: Guidance on using system commands (e.g., switch -slot, pvp, and pvc) to configure VP mode and manage virtual paths and circuits.
• Support Resources: Information on how to access the latest firmware, MIB data, and technical documentation via the Network Product Business web sites or the dedicated bulletin board system.
