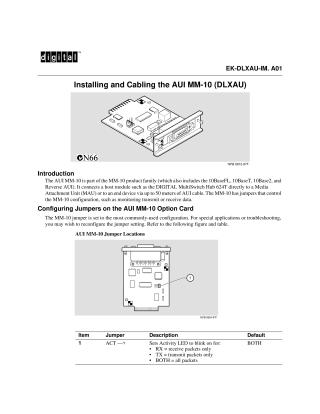

Installing and Cabling the AUI MM-10 (DLXAU)

This document provides installation and configuration instructions for the Digital Equipment Corporation AUI MM-10 (DLXAU) option card. The AUI MM-10 is a module designed for the MultiSwitch Hub 624T that facilitates connection to a Media Attachment Unit (MAU) or end device via an AUI cable.

Key sections of the document include:

• Configuration: Explains the jumper settings used to control the activity LED (monitoring receive, transmit, or both packet types).
• Installation Procedure: Provides step-by-step instructions for inserting the hot-swappable module into the required DLXMC-MA Carrier Card, noting specific power requirements for the right-hand slot.
