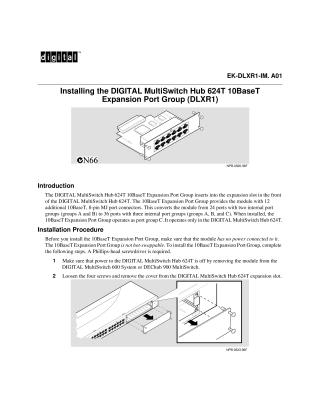

Installing the DIGITAL MultiSwitch Hub 624T 10BaseT Expansion Port Group (DLXR1)

This document provides instructions for installing the 10BaseT Expansion Port Group (DLXR1) into a DIGITAL MultiSwitch Hub 624T. The expansion module adds 12 additional 10BaseT ports to the hub, increasing total capacity to 36 ports (organized into groups A, B, and C). The guide outlines the necessary safety precautions—specifically noting that the module is not hot-swappable—and details the step-by-step physical installation process and post-installation LED status verification. Troubleshooting resources are also provided.
