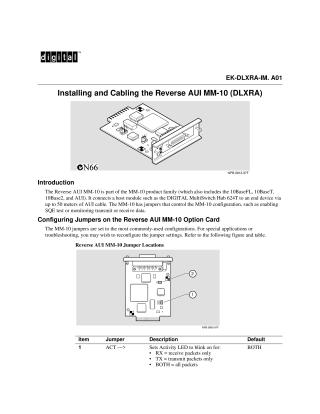

Installing and Cabling the Reverse AUI MM-10 (DLXRA)

This document provides installation and configuration instructions for the Reverse AUI MM-10 (DLXRA) option card, a component of the MM-10 product family used to connect a Digital MultiSwitch Hub 624T to an end device via an AUI cable.

Key sections of the guide include:

• Jumper Configuration: Details the settings for the ACT (activity LED) and SQE Test jumpers, including default settings.
• Installation Procedure: Outlines the steps for installing the hot-swappable module into a carrier card, including aligning the card, seating it in the slot, securing the screws, and connecting the DB-15 AUI cable.
• Requirements: Notes that a Phillips-head screwdriver is required and emphasizes that the carrier card (DLXMC-MA) must be installed prior to the MM-10 and is not hot-swappable.
