Prioris HX MP Server

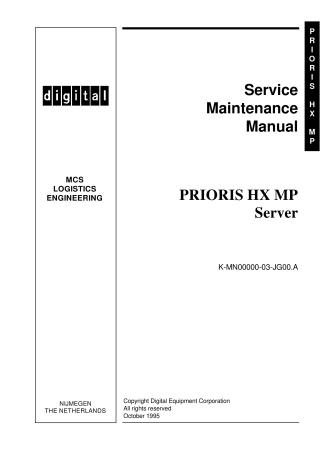

This document is the service maintenance manual for the Digital Prioris HX MP server. It provides a comprehensive guide for service technicians on product specifications, server utilities, configuration steps using the System Configuration Utility (SCU), hardware removal and replacement procedures, mass storage setup, and troubleshooting. Key technical information includes:

• Configuration: Details on using the SCU to manage EISA/ISA/PCI boards and BIOS settings.
• Maintenance: Step-by-step instructions for replacing CPU modules, memory modules, batteries, and other internal components.
• Storage: Guidelines for SCSI configuration, RAID setups, and hot-swap drive backplane management.
• Troubleshooting: Tables for identifying beep codes, POST error messages, and troubleshooting procedures for boot, disk, and monitor issues.

Technicians are advised to follow strict safety precautions, including electrostatic discharge (ESD) procedures, and to use only recommended tools.
