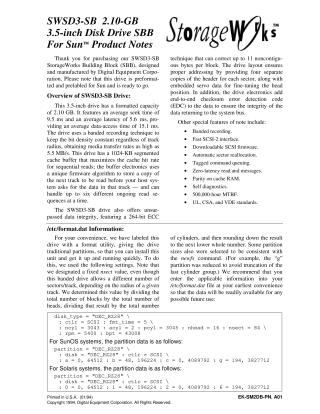

StorageWorks Building Block 3.5-inch Disk Drive

This document provides technical specifications and setup information for the SWSD3-SB 2.10-GB StorageWorks Building Block (SBB) hard drive. Designed for use with Sun workstations, the drive is preformatted and prelabeled. Key technical details include:

• Performance: 2.10 GB capacity, 15.1 ms average access time, and a 1024-KB segmented cache.
• Features: Banded recording, SCSI-2 interface, 264-bit ECC, and automatic sector reallocation.
• Configuration: Includes specific /etc/format.dat settings for both SunOS and Solaris systems, allowing for quick integration.
• Specifications: Detailed tables covering physical dimensions, power requirements, environmental ranges, and performance metrics.
• Diagnostics: Information on the two front-facing LEDs used to indicate drive activity and fault status.
