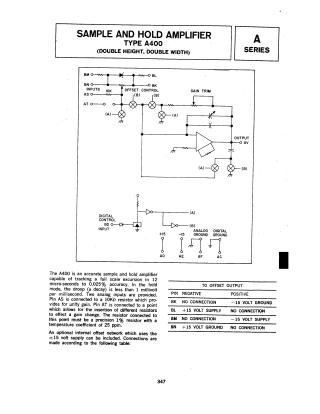

Sample and Hold Amplifier

The A400 is a double-height, double-width sample and hold amplifier. It features 12 microsecond track time to 0.025% accuracy and a droop rate of less than 1 millivolt per millisecond. The device includes input terminals for gain adjustment and offset control, and provides for unity gain via a 10K resistor. Additional specifications include an aperture of less than 150 nanoseconds, a full-scale input of +/- 10 Volts, and output current of 10 mA.
