Sample and Hold Amplifier

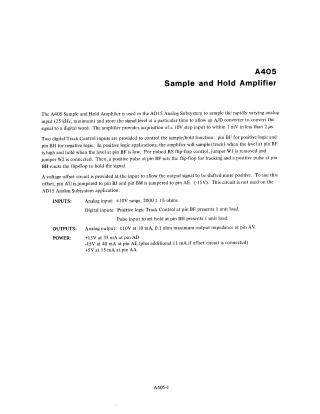

This document provides a technical overview and operating instructions for the A405 Sample and Hold Amplifier. The module is designed for use within the AD15 Analog Subsystem to sample rapidly varying analog signals at a minimum of 25 kHz. Key technical details include:

• Functionality: Provides 10V step acquisition to within 1mV in less than 2µs.
• Control: Includes digital Track Control inputs (pins BF and BH) with jumper-selectable logic for positive or negative application.
• Circuitry: Features an optional voltage offset circuit, configurable via jumpers to shift output signals more positively.
• Specifications: Lists detailed requirements for analog/digital inputs, output voltage/impedance, and specific power requirements for pins AD, AE, and AA.
