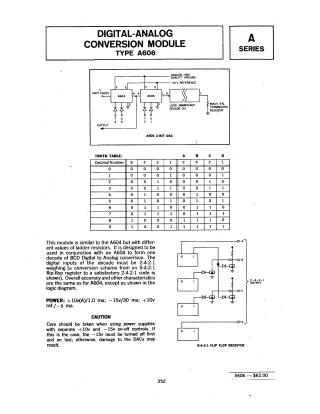

Digital-Analog Conversion Module

This document provides technical specifications and operational information for the Type A606 Digital-Analog Conversion Module. It is designed to work in conjunction with the A604 module to form a single decade of BCD (Binary Coded Decimal) digital-to-analog conversion using an 8-4-2-1 weighing scheme.

Key contents include: * Logic Diagram: Shows the configuration for the 8-4-2-1 flip-flop register and the connection to the A606. * Truth Table: Defines the input/output relationships for decimal numbers 0 through 9 using 8-4-2-1 weighing. * Power Requirements: Specifies +10v, -15v, and +10v reference power needs. * Operational Caution: Highlights critical power-up/power-down sequences for the -15v supply to prevent module damage.
