10-Bit D/A Converter, Single Buffered

This document outlines the operational and technical characteristics of the A607 10-bit D/A converter. The module features a 10-bit buffer register, binary weighted network, and a summing amplifier. Key specifications include:

• Input: TTL compatible inputs with timing requirements (20 ns data settling, 50 ns CLOCK pulse width, 30 ns CLEAR pulse width).
• Output: Unipolar analog output (0V to 2.0V) with 2mV increments, capable of driving a 10 mA load.
• Power: Requires 5V at 200 mA (max) and -15V at 100 mA (max).

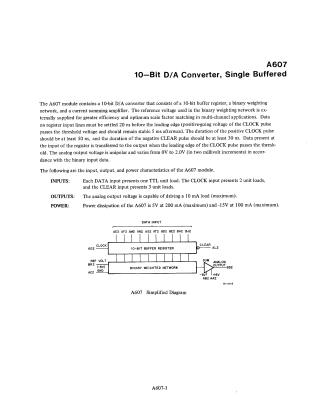

A simplified diagram of the module and its signal flow is provided.
