10-Bit Analog-to-Digital Converter

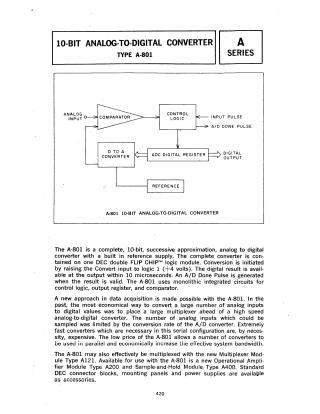

This document provides an overview and technical specifications for the Type A-801, a 10-bit successive approximation analog-to-digital converter. It is designed as a complete converter housed on a single DEC double Flip Chip logic module. The document details the unit's operation, including conversion time, electrical characteristics, input/output requirements, and compatibility with other DEC modules. Key specifications listed include a 100 kHz conversion rate, parallel binary output, and compatibility with a +10 volt input range.
