Regulator Board 8A Core

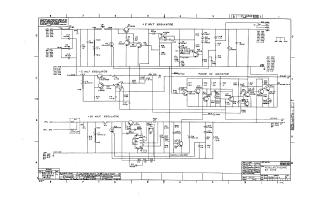

This document contains two pages of detailed electrical schematic diagrams for the Regulator Board 8A Core. Page 1 displays circuits for +5V, -5V, and +20V regulators, along with power indicator logic and overvoltage crowbar protection. Page 2 details the +/- 15V power distribution and an AC low indicator circuit with frequency select options.
