Power Supply

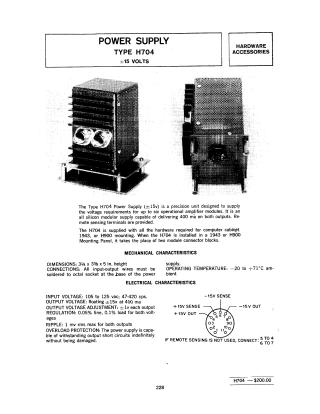

This document outlines the specifications for the Type H704 Power Supply. Designed for precision, the unit provides +/-15V DC and is capable of delivering up to 400 mA on both outputs. It includes features such as:

• Mechanical: Compatible with computer cabinet, 1943, or H900 mounting, occupying the space of two module connector blocks.
• Electrical: Features include 105-125 VAC input, +/-1V output voltage adjustment, 0.05% line regulation, 0.1% load regulation, and 1 mV rms maximum ripple.
• Protection: Equipped with overload protection, allowing for indefinite output short circuits without damage.
• Temperature: Operates in ambient temperatures between -20 and +71°C.

The document also includes pin-out diagrams for remote sensing configuration.
