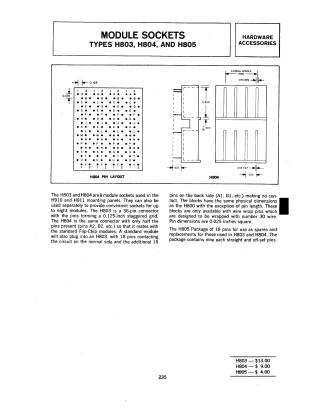

Module Sockets

This document provides technical details for the H803, H804, and H805 module sockets. The H803 and H804 are 36-pin module sockets designed for use with H910 and H911 mounting panels or standalone applications, featuring a 0.125-inch staggered grid. The H804 is a half-pin variant specifically for standard Flip-Chip modules. The H805 package consists of spare straight and off-set pins for maintenance of the H803 and H804 units.
