Gate Module MI60

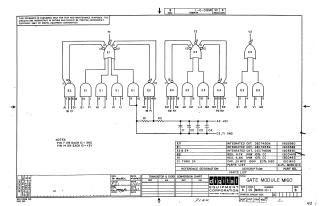

This document provides a detailed circuit schematic for the Digital Equipment Corporation Gate Module MI60, originally copyrighted in 1967. It includes:

• Circuit Diagrams: Logic gates utilizing integrated circuits DEC7450N, DEC7453N, and DEC7460N.
• Parts List: Specifications for resistors, capacitors, and ICs used in the assembly.
• Technical Notes: Specifications for pin configurations (Pin 7 for GND, Pin 14 for +5V).
• Maintenance Info: Notes that the schematic is intended for test and maintenance purposes only and represents proprietary circuits.
