16-to-1 Data Selector

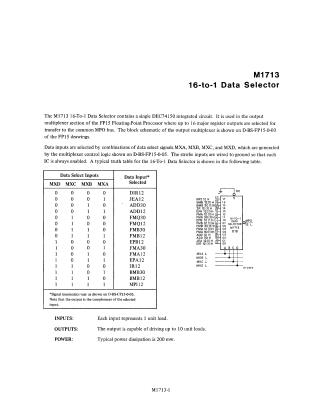

The M1713 16-to-1 Data Selector contains a single DEC74150 integrated circuit. It is used in the output multiplexer section of the FP15 Floating-Point Processor to select up to 16 major register outputs for transfer to the common MPO bus. The document provides a truth table detailing the data select inputs (MXA, MXB, MXC, MXD) and the corresponding selected data inputs. Additionally, it lists electrical characteristics, including unit load requirements for inputs, output drive capacity, and typical power dissipation.
