Console Switch Flip Flops

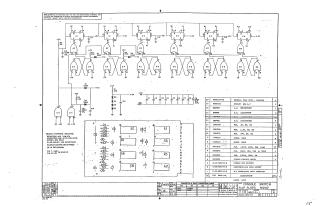

This document provides a detailed circuit schematic for the M247 Console Switch Flip Flop module, designed by Digital Equipment Corporation in 1970. It includes the wiring diagram for multiple flip-flop circuits using DEC 1074 series integrated circuits, as well as a comprehensive parts list detailing resistors, capacitors, diodes, and the etched circuit board.
