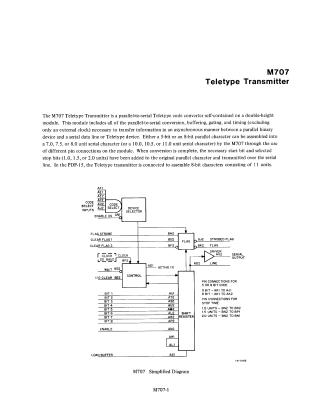

Teletype Transmitter

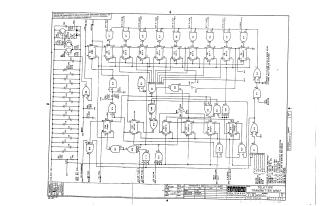

This document is a technical schematic diagram for the Digital Equipment Corporation Teletype Transmitter M707. It outlines the logical structure and connections for the transmitter's circuitry, including bit conversion logic, timing, and various signal inputs/outputs.
