Diode Networks

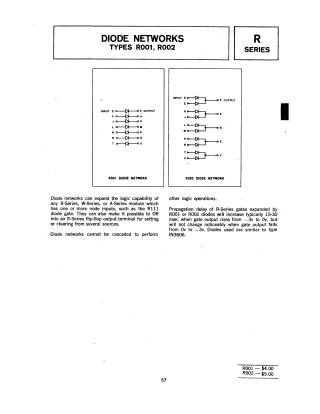

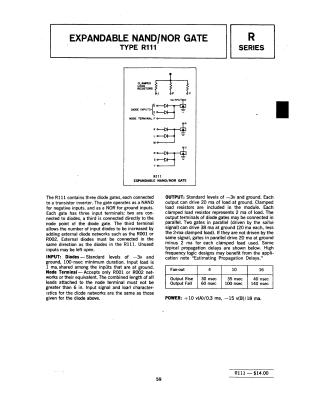

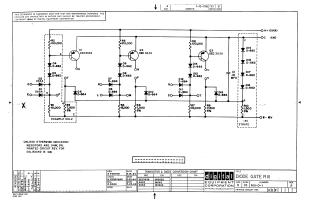

This document outlines the specifications and applications for the R-Series R001 and R002 Diode Networks. These networks are designed to expand the logic capability of R-Series, W-Series, or A-Series modules. Key features include:

• Functionality: Enables OR logic for setting or clearing flip-flops from multiple sources.
• Constraints: Cannot be cascaded for further logic operations.
• Performance: Introduces a typical propagation delay of 15-30 nsec when output rises from -3v to 0v; delay is negligible when falling from 0v to -3v.
• Components: Utilizes diodes similar to the 1N3606 type.
