Inverter

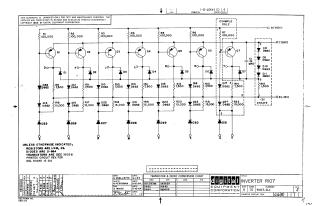

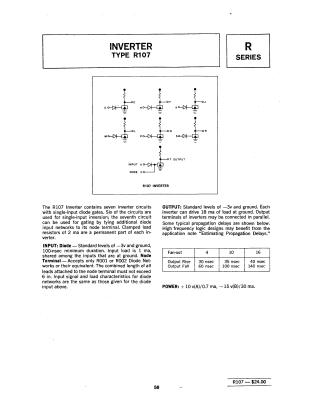

This document provides technical data for the R107 Inverter (R Series), which contains seven inverter circuits. Six circuits provide single-input inversion, while the seventh allows for gating via a node terminal. Key specifications include:

• Inputs: Accepts standard -3v and ground levels with 100-nsec minimum duration.
• Outputs: Capable of driving 18 mA of load at ground.
• Propagation Delays: Listed in a table format for fan-outs of 4, 10, and 16.
• Power Requirements: +10v (A) at 0.7 mA and -15v (B) at 30 mA.
