DC Carry Chain

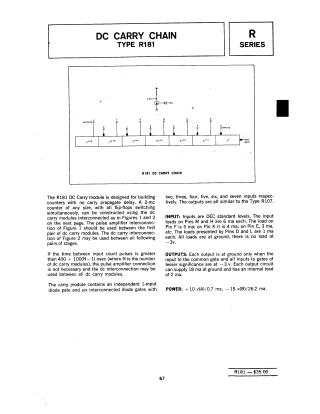

This document provides technical specifications and operational instructions for the R181 DC Carry module. The module is specifically designed for constructing counters where all flip-flops switch simultaneously, effectively eliminating carry propagate delay. It includes details on:

• Interconnection Methods: Guidelines for using pulse amplifier or DC carry interconnections between modules, depending on the timing of input count pulses.
• Technical Specifications: Input/output signal characteristics, including voltage levels and load specifications.
• Power Requirements: Detailed power consumption metrics for +10V and -15V supplies.

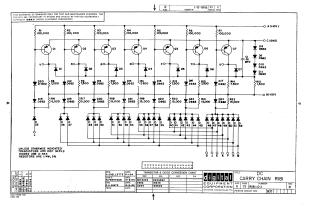

• Gate Configuration: Describes the internal arrangement of an independent 1-input gate and six interconnected diode gates with varying input capacities.
