Flip-Flop

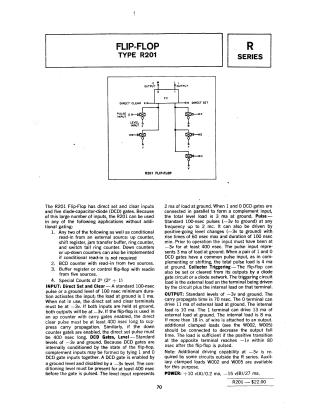

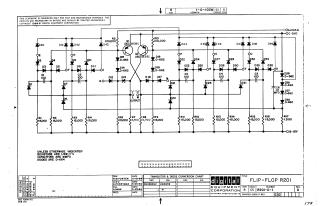

This document provides technical details for the R201 Flip-Flop, a module within the R series that includes direct set/clear inputs and five diode-capacitor-diode (DCD) gates. The summary covers:

• Applications: Useful for up/down counters, shift registers, jam transfer buffers, ring counters, and BCD counters without additional gating.
• Inputs: Details for direct set/clear (100-nsec pulses), DCD gate operation (requiring standard -3v and ground levels), and collector triggering requirements.
• Outputs: Electrical characteristics, including carry propagation time (70 nsec) and load-driving capabilities.
• Power Requirements: Operating voltage specifications of +10v (0.2 ma) and -15v (27 ma).
