Dual Flip-Flop

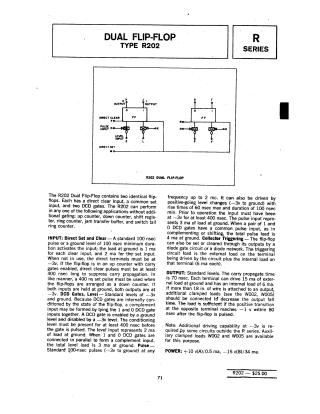

The R202 Dual Flip-Flop is a module containing two identical flip-flops, each featuring direct clear, common set, and two DCD gates. This component is versatile and supports various configurations such as up/down counters, shift registers, ring counters, and buffer applications without needing additional gating. The documentation covers detailed input/output electrical specifications, including pulse requirements, load information, carry propagation timing, and power supply requirements (+10v/0.5ma and -15v/34ma).
