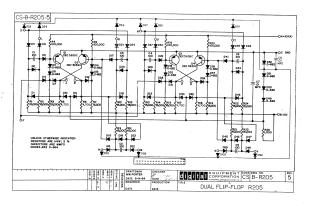

Dual Flip-Flop

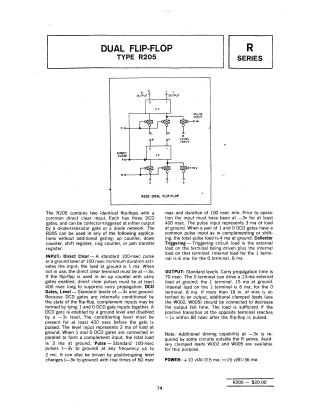

The document provides a technical specification for the R205 Dual Flip-Flop module. It outlines the device's functional capabilities, including its use in up/down counters, shift registers, and jam transfer registers. The summary includes:

• Input Specifications: Details on direct clear pulses, DCD gates (level and pulse), and collector triggering.
• Output Specifications: Information on load driving capabilities and propagation times.
• Power Requirements: Specifies the required +10v and -15v power supplies.
• Design Notes: Recommendations for cable lengths and the use of auxiliary clamped loads (W002, W005) to optimize output performance.
