Pulse Amplifier

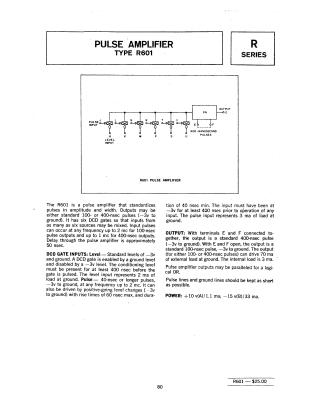

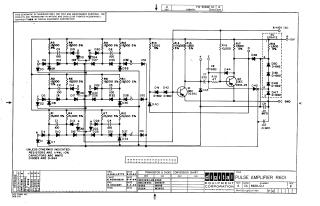

This document outlines the technical specifications for the R601 Pulse Amplifier, a module in the R Series designed to standardize incoming pulses in both amplitude and width.

Key Features:

• Functionality: Offers standard output pulses of either 100 nsec or 400 nsec.
• Inputs: Features six DCD (Diode-Capacitor-Diode) gates for mixing inputs from up to six sources.
• Performance: Supports frequencies up to 2 MHz for 100-nsec pulses and up to 1 MHz for 400-nsec pulses, with an internal delay of approximately 50 nsec.
• Flexibility: The output pulse width is configured by connecting or disconnecting terminals E and F. The unit is capable of driving 70 mA of external load at ground.
