Positive Input Converter

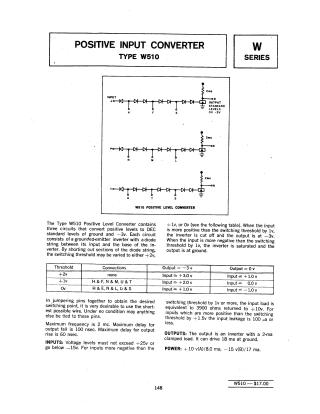

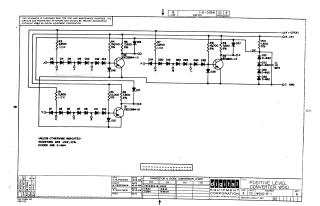

The Type W510 Positive Input Converter is a W-series module designed to convert positive logic levels to DEC standard levels of ground and -3V. It contains three independent circuits, each featuring a grounded-emitter inverter and a diode string at the input base. By jumpering specific pins, users can configure the switching threshold to +2V, +1V, or 0V. The document includes a configuration table, electrical characteristics, power requirements, and instructions for optimal installation using short wire connections.
