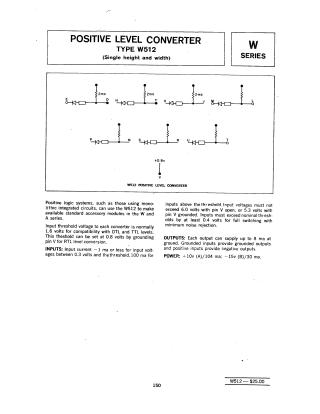

Positive Level Converter

This document provides specifications and operational information for the W512 Positive Level Converter, a single-height and single-width accessory module in the W series. The module is designed for positive logic systems using monolithic integrated circuits. It supports compatibility with DTL and TTL levels with a 1.6-volt input threshold, which can be adjusted to 0.8 volts for RTL level conversion by grounding pin V. The summary includes detailed ratings for inputs, outputs, and power requirements (+10v and -15v).
