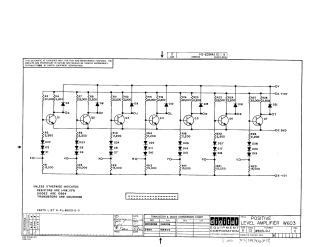

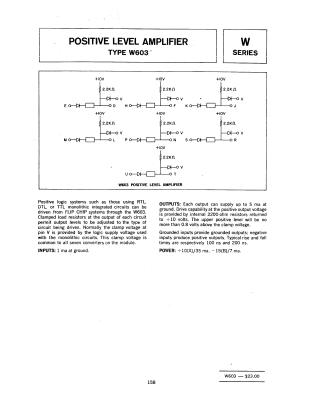

Positive Level Amplifier

The W603 is a W-series FLIP CHIP module designed to drive positive logic systems, including RTL, DTL, or TTL integrated circuits. The module features seven converters, each equipped with clamped load resistors that allow output levels to be adjusted based on the specific requirements of the driven circuit. The document outlines key operational parameters, including an input requirement of 1 mA at ground, and output capabilities of up to 5 mA at ground with specific rise and fall times.
