Power Supplies

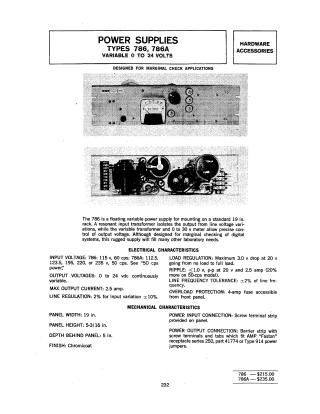

This document provides technical specifications and features for the Type 786 and 786A floating variable power supplies. Key details include:

• Applications: Designed for marginal checking of digital systems and general laboratory use.
• Electrical Characteristics: Output is 0 to 24 VDC continuously variable with a maximum current of 2.5 amps. Features line regulation of 2% and overload protection via a front-panel 4-amp fuse.
• Mechanical Characteristics: Mounted on a standard 19-inch rack, finished in Chromicoat, with specific power input and output terminal configurations.
• Variants: Input voltage specifications differ between the 786 (115 V, 60 cps) and the 786A (multiple voltage options, 50 cps).
