Power Receptacle

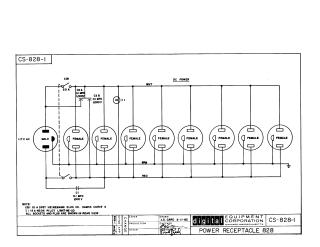

This document provides a wiring schematic for the Power Receptacle 828, a device designed to handle 117V AC power. The diagram illustrates the connection of multiple female sockets to a main AC input, protected by a 20A circuit breaker (CBI). It includes capacitors (C1, C2A, C2B) for noise suppression, a neon pilot light (I1) for status indication, and explicit grounding connections. All components, including the Heinemann Electric Co. XAM33 breaker and NE-2D pilot light, are specified for maintenance and assembly reference.
