RK05J Disk Drive

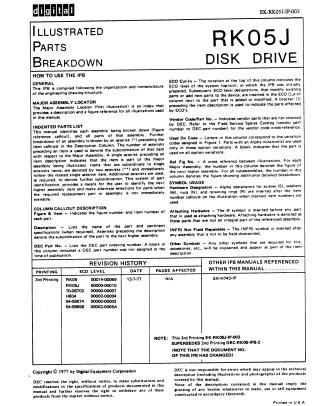

This manual, EK-RK05J-IP-003, is an Illustrated Parts Breakdown (IPB) for the RK05J Disk Drive. It outlines the structure and nomenclature used in engineering drawings, offering a guide for identifying major assemblies, subassemblies, and individual parts through an indented list system. It details the column descriptions for parts lists—including figure numbers, descriptions, part numbers, and engineering change order (ECO) information. Additionally, the manual explains symbol usage for hardware designators, attaching hardware, and non-field-repairable components, providing a comprehensive reference for maintenance and part identification.
