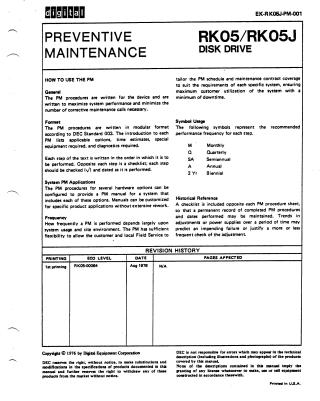

RK05/RK05J Disk Drive

This document provides the preventive maintenance (PM) procedures for the RK05 and RK05J disk drives, produced by Digital Equipment Corporation in 1976. The manual is designed to help technicians maximize system performance and minimize corrective maintenance requirements through a structured, modular maintenance schedule. The guide includes:

• PM Schedule: A table outlining tasks to be performed at quarterly, annual, and 5-year intervals (or based on operating hours), covering components like filters, heads, spindles, and power supplies.
• Symbol Usage: Definitions for maintenance frequency symbols.
• Diagnostics: References to required diagnostic tests (MainDEC-11-DZRKL and MainDEC-08-DHRKB).
• Parts & Equipment: A comprehensive table listing required test equipment (e.g., multimeters, oscilloscopes) and specific replacement parts (e.g., filters, belts, cleaning kits, and torque wrenches).
