Flip Chip Modules Test Specs

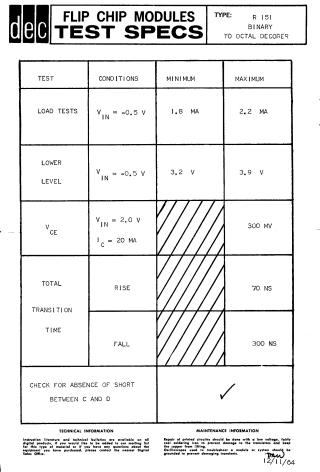

This document outlines the test specifications and provides the electronic schematic for the R151 Binary to Octal Decoder Flip Chip module. The test specifications include voltage and current parameters for load tests, lower level thresholds, collector-emitter voltage (Vce), and total transition time (rise and fall). It also specifies a requirement to check for short circuits between pins C and D. The second page contains a detailed schematic diagram of the module, including component values for resistors and diode identifications, along with maintenance notes regarding proper soldering techniques and the use of grounded oscilloscopes for troubleshooting.
