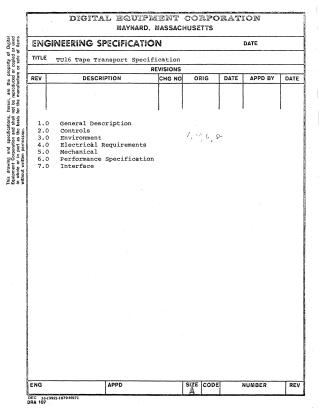

Tape Transport Specification

The TU16 Tape Transport Specification outlines the technical, electrical, mechanical, and performance requirements for the TU16 series magnetic tape drives. The document details:

• General Description: Capable of 9-track (1600/800 BPI) and 7-track (800/556/200 BPI) recording.
• Controls: Includes definitions for local off-line manual controls and indicators.
• Environment: Defines operating and non-operating temperature and humidity ranges.
• Electrical & Mechanical: Provides specifications for power, physical dimensions, and weight.
• Performance: Covers tape speed, rewind times, error rates, and tape motion characteristics.
• Interface: Describes the transport bus, including signaling protocols, command lines, and status reporting.

The document also lists related standards and specifications.
