5-Bit Teletype Receiver

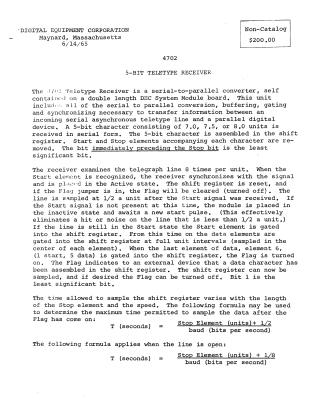

This document describes the 4702 5-Bit Teletype Receiver, a serial-to-parallel converter implemented on a double-length DEC System Module board. It includes details on:

• Functionality: Converts asynchronous serial teletype signals into parallel digital format, removing Start and Stop bits.
• Operation: Explains the synchronization process, sampling intervals, and flag indication for external devices.
• Electrical Specifications: Defines input requirements (Clock, Enable, Data Input, Clear Flag) and output characteristics (Bits 1-8, Active, Flag) using DEC Standard levels.
• Configuration: Provides a guide for setting internal jumpers to define stop code units and jump-coding for custom configurations.
