6132 TWO MAJORITY GATES

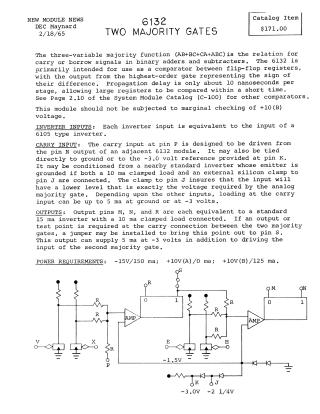

This document serves as a technical bulletin from February 18, 1965, detailing the DEC 6132 "Two Majority Gates" module. The module implements a three-variable majority function, designed primarily for use as a comparator between flip-flop registers in binary adders and subtractors. It provides a fast propagation delay of approximately 10 nanoseconds per stage. The document outlines technical specifications, including inverter input equivalents, carry input configuration, output capabilities, and power requirements (-15V, +10V). It also notes that the module should not be used with marginal checking of the +10V(B) voltage.
