Cache Memory Option

The KK11-B Field Maintenance Print Set provides detailed technical documentation for the Cache Memory Option, a hardware component for PDP-11 systems. This document includes:

• Drawing Directory: A comprehensive list of the included drawings and diagrams.
• Block and Timing Diagrams: Visual representations and timing specifications illustrating the operation and data flow of the cache module.
• Parts List: A detailed catalog of components used to build the M7097 Cache Memory Module.

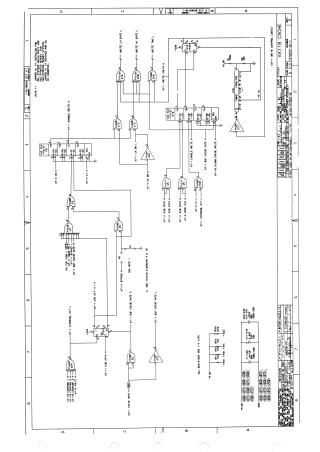

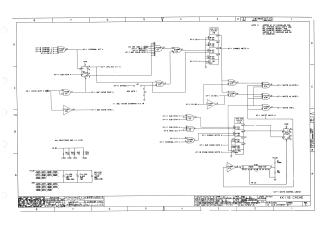

• Circuit Schematics: Full electronic blueprints for the module, essential for troubleshooting and repair.

This material was published by Digital Equipment Corporation in 1979 and is intended for use in maintaining the KK11-B system hardware.
