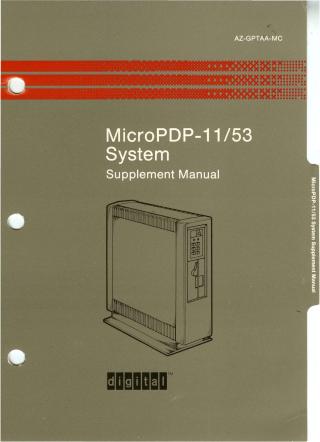

MicroPDP-11/53 System Supplement Manual

This document serves as a supplement to the MicroPDP-11 Systems Owner's Manual and Technical Manual, specifically for the MicroPDP-11/53 model. It covers:

• Installation and Operation: Guidance on setting baud rates, connecting consoles, and installing test diskettes.
• Enclosure Details: Descriptions of the BA23-A enclosure, including the front control panel, mass storage, backplane assembly, and rear I/O distribution.
• Base System: Details on the KDJ11-DA CPU module, automatic boot mode, and console mode commands.
• System Options: Information on expansion memory (MSV11-Q), mass storage (RX33, RD3n), and controller modules (RQDX3).
• Diagnostics: Overview of start-up self-tests, troubleshooting, and the use of customer and field service test diskettes.
• FRU Removal: Procedures for replacing field-replaceable units.
• Specifications and Formatting: Technical specifications and procedures for formatting fixed disks and diskettes.
