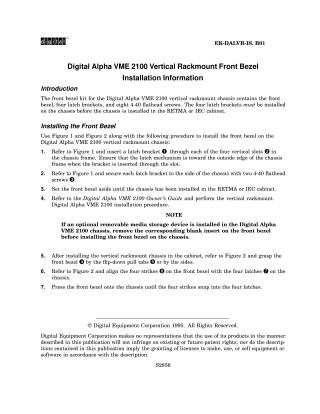

Digital Alpha VME 2100 Vertical Rackmount Front Bezel

This document details the procedure for installing a front bezel onto a Digital Alpha VME 2100 vertical rackmount chassis. The process involves:

1. Installing four latch brackets onto the chassis frame using provided 4-40 flathead screws before mounting the chassis into the cabinet.
2. Following the Digital Alpha VME 2100 Owner’s Guide for vertical rackmount chassis installation.
3. Removing blank inserts if an optional removable media storage device is present.
4. Attaching the front bezel to the chassis by aligning the strikes on the bezel with the latches on the chassis and snapping them into place.

Included figures illustrate the placement of latch brackets and the final assembly of the front bezel.
