16K Unibus Timing

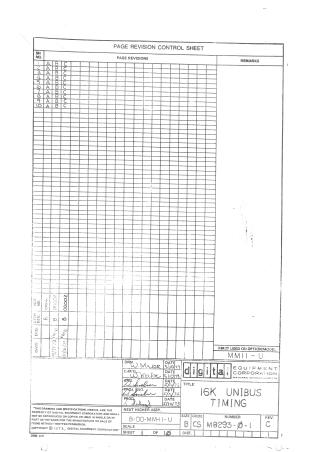

This document contains the engineering schematics and timing logic diagrams for the 16K Unibus Timing module (referenced as M8293-0-1). It includes: - A page revision control sheet. - A parts list and component layout. - Detailed logic diagrams for device selection, read timing, write timing, byte masking logic, and initialization (DCLO).
