ZLX Smart Frame Buffer Owner's Manual

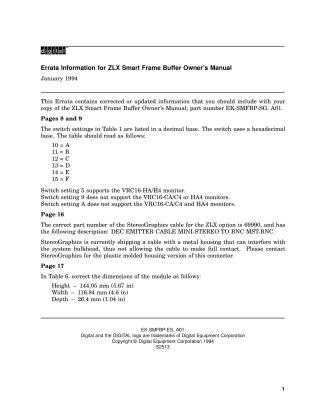

This errata document from January 1994 contains critical updates for the ZLX Smart Frame Buffer Owner's Manual (EK-SMFBP-SG. A01):

• Pages 8 and 9: Clarifies that Table 1 switch settings are in hexadecimal, not decimal, and lists the correct mappings (10=A to 15=F). It also clarifies monitor support for specific switch settings.
• Page 16: Corrects the StereoGraphics cable part number to 69990 and notes a physical compatibility issue with the current metal-housed connector, recommending a plastic molded housing version.
• Page 17: Provides updated physical dimensions (Height, Width, Depth) for the module.
