Operational Amplifier

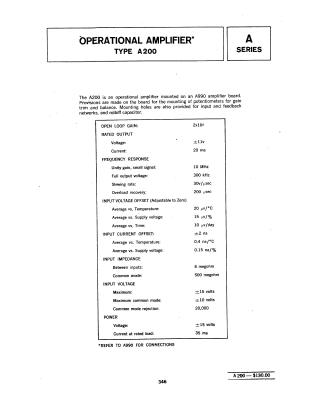

This document provides a technical overview and detailed performance specifications for the A200 Series operational amplifier. Designed to be mounted on the A990 amplifier board, the A200 includes provisions for external gain trim, balance adjustment, and input/feedback network connections. Key specifications listed include open-loop gain (2x10^6), rated output (±11v, 20ma), frequency response parameters, input offset voltage/current data, and power requirements (±15v).
