Diode Gate

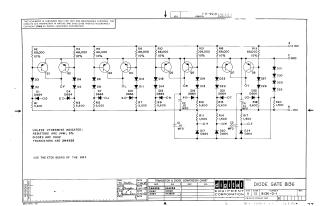

This document is an engineering schematic for the DIODE GATE B136 module produced by Digital Equipment Corporation in 1969. It outlines the circuit design, including the arrangement of transistors (2N4258), diodes (D664), and resistors used in the gate configuration. The document includes a transistor and diode conversion chart and specifies the use of the B134 etch board.
