Diode Inverter

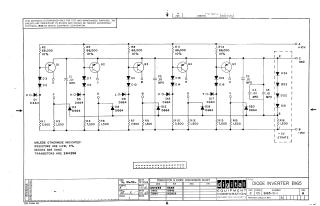

This document contains the official technical schematic for the B165 Diode Inverter circuit, produced by Digital Equipment Corporation in 1966. It provides a detailed wiring diagram showing the configuration of resistors (R1 through R16), diodes (D1 through D24), and transistors (Q1 through Q5). The document also includes a reference conversion chart for transistors and diodes, specifying replacement parts (e.g., 2N4258 transistors and D664 diodes).
