Adder Gate

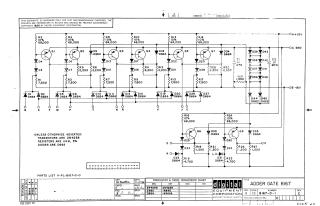

This document provides a technical schematic of the B167 Adder Gate, produced by the Digital Equipment Corporation in 1966. It includes detailed electrical diagrams showing component connections, transistor types (2N4258), diode types (D664, D662), and resistor specifications. The schematic is intended for test and maintenance purposes.
