Delay Type B310

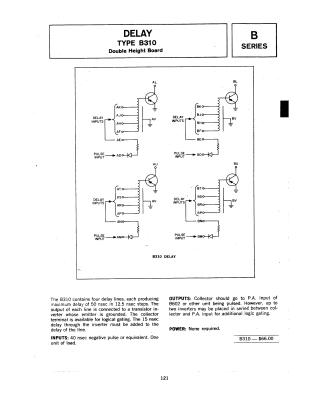

This document provides the technical details and schematic for the B310 delay board, a double-height module featuring four independent delay lines. Each line provides a maximum delay of 50 nsec in 12.5 nsec steps. The board includes transistor-based inverters for each line with an additional 15 nsec of delay. It is designed to be used with pulse inputs (40 nsec negative pulse) and provides outputs compatible with P.A. inputs, supporting chaining of up to two inverters for expanded logic gating. The module requires no external power.
