Delay with Pulse Amplifier

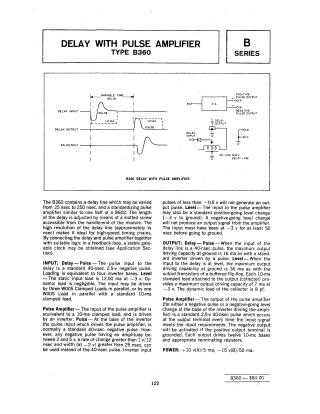

This document outlines the operational characteristics of the B360 Delay with Pulse Amplifier. The B360 contains a variable delay line (25 to 250 nsec) and a pulse amplifier. It provides details on input signal requirements, output driving capabilities, timing adjustment via a slotted screw, and power requirements (+10 V/5 mA; -15 V/50 mA). It includes a block diagram showing the delay input, pulse and level inputs, and positive/negative pulse output paths.
