Disk Read Amplifier

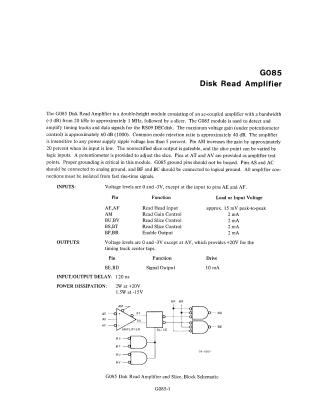

This document provides a technical overview and specifications for the G085 Disk Read Amplifier. The module is designed for use with RS09 DECdisk systems to amplify timing tracks and data signals. Key details included are:

• Functional Description: Details on bandwidth, voltage gain, common mode rejection, and signal processing.
• Pin Definitions: Input and output pin functions, including signal levels and load requirements.
• Operational Specs: Power dissipation and signal delay characteristics.
• Block Schematic: A diagram illustrating the internal components of the amplifier and slice modules.
